EOAS Scientific Instruments
Figure:
Measurments in mm.
|

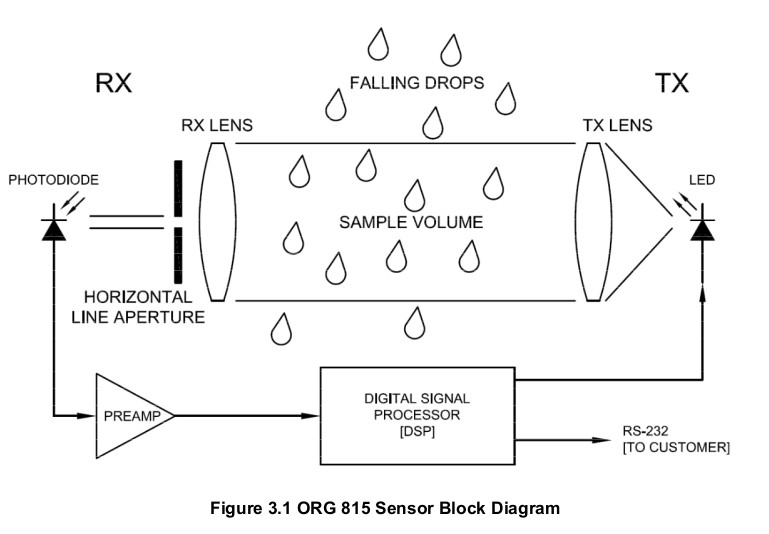

OSI's optical precipitation sensors measure rain and snow by detecting the optical
irregularities induced within the sample volume by precipitation particles falling through a
beam of partially coherent infrared light.

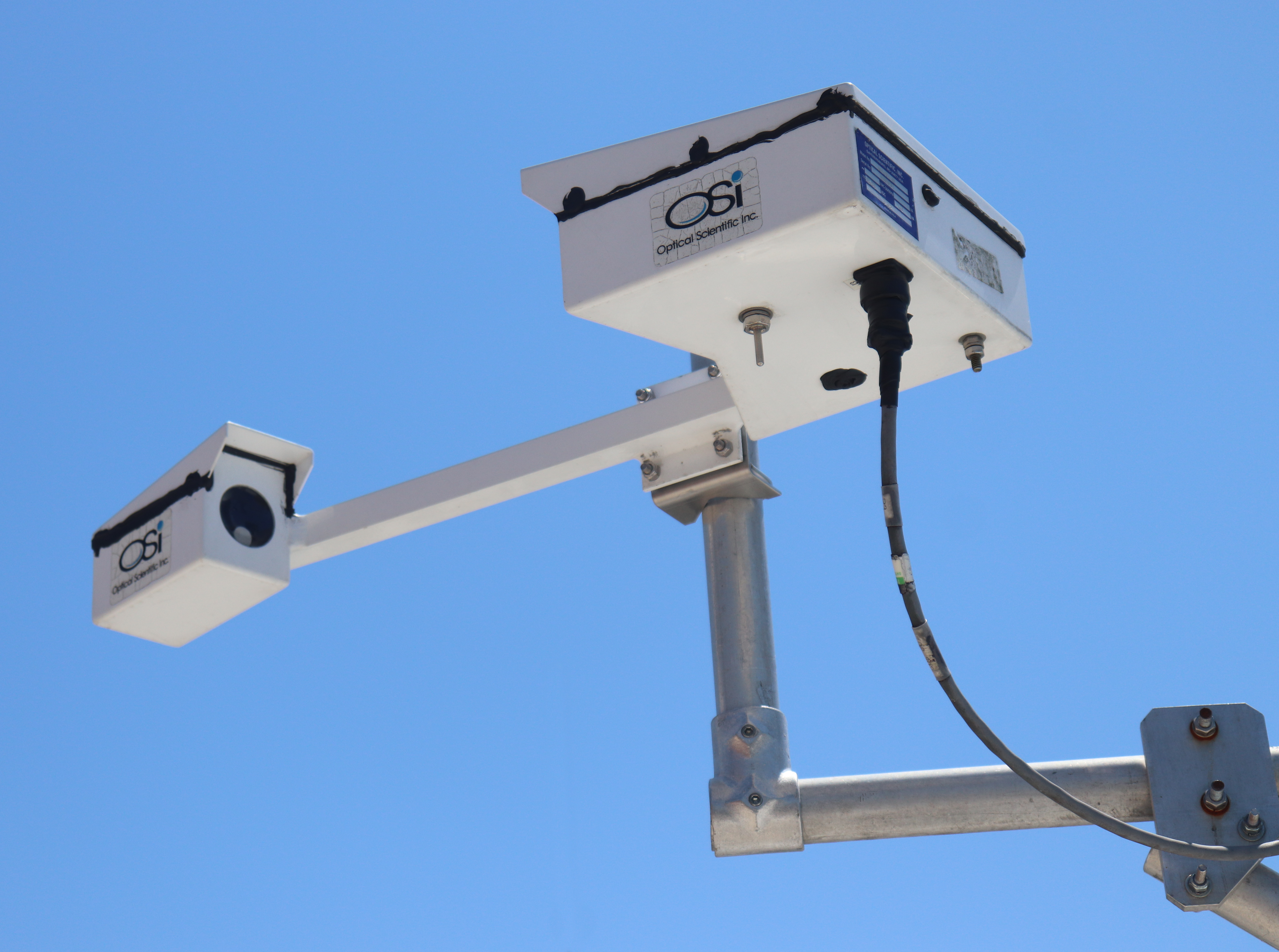

Recommended 2M off the ground, far from obstructions. Place as you would a standard rain gauge. There can be no obstructions normal to the sensor. NOTE: This legacy sensor is operating, but needs to be re-calibrated. Data from this sensor is not for research use. Please use the WxPro Weather station data.
EOAS-ID = ORG00
Voltage = 11 - 16 VDC ; .4-.8A
Serial = RS-232
Protocol = OSI-ASCII
Fuse = 1A
Baud = 1200
Format = 8N1
Flow = No Hard, No Soft
