Figure:

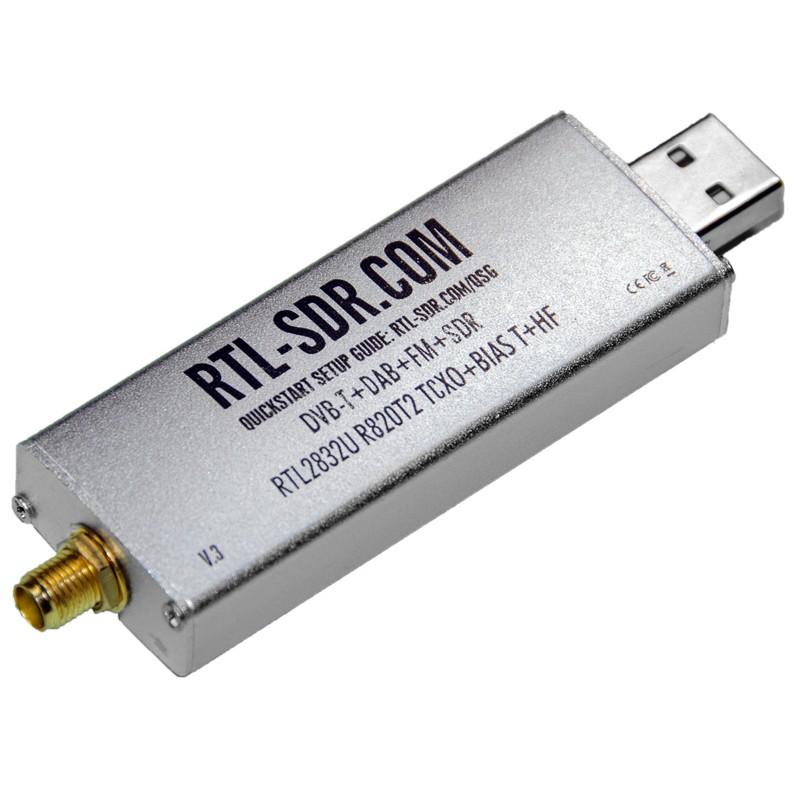

Dongle with standard female SMA connector
|
RTL-SDR dongles were originally designed for DVB-T HDTV reception,but they were found by hardware hackers to be useful as a general purpose SDR.
Recommended 2M off the ground, far from obstructions. Place as you would a standard rain gauge. There can be no obstructions normal to the sensor.
EOAS-ID = SDR00 ANT01
Voltage = 5 VDC : 280 mA
Serial = USB
Software = rtl-sdr, spyserver
Port = 1234
Bandwidth = 2.4 MHz
ADC = 8 bit
Frequency = 500 kHz - 1766 MHz
Impedance = 50 Ohms
Figure:

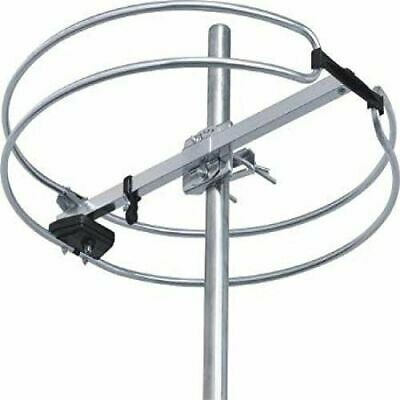

FM band omidirectional antenna
|
|
